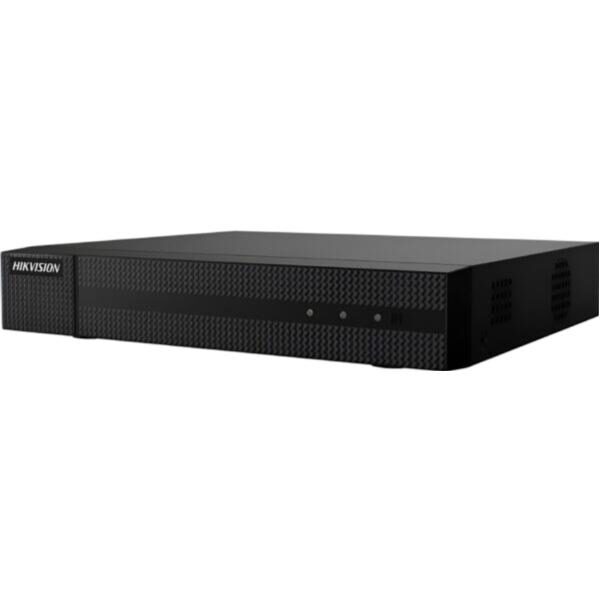

HIKVISION/HiWatch DVR Καταγραφικό,8 καναλιών,Turbo HD.
• Ανάλυση 4 MP,κωδικοποίση βίντεοH.265 Pro+/H.265 Pro/H.265/H.264+/H.264.
• Ανίχνευση κίνησης (αναγνώριση ανθρώπων και οχημάτων).
• Σκληρός δίσκος τεχνολογίας Sata,χωρητικότητας 10 ΤΒ.
• Yποστήριξη σημάτων βίντεο HDTVI/AHD/HDCVI/CVBS.
• Τροφοδοσία 12 VDC/1,3 A.
DVR | DVR HWD-6108MH-G4 |
Video Compression: | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
Analog Video Input: | 8-ch,BNC Interface (1.0 Vp-p, 75 Ω), Supporting Coaxitron Connection |
HDTVI Input: | 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 |
AHD Input: | 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
HDCVI Input: | 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
CVBS Input: | Support |
IP video Input: | •2-ch (Up to 10-ch) |
•Enhanced IP mode on: 4-ch (Up to 12-ch), Each Up to 4 Mbps | |
•Up to 6 MP Resolution | |
•Support H.265+/H.265/H.264+/H.264 IP Cameras | |
Audio Compression: | G.711u |
Audio Input: | 1-ch, RCA (2.0 Vp-p, 1 KΩ), 8-ch via Coaxial Cable |
HDMI/VGA Output: | •1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz |
•1280 × 720/60Hz, 1024 × 768/60Hz | |
Encoding Resolution: | •When 1080p Lite Mode is not Enabled:4 MP Lite/3 MP/1080p/720p/VGA/WD1 |
•When 1080p Lite Mode is not Enabled:4CIF/CIF | |
•When 1080p Lite Mode is Enabled:4 MP Lite/1080p Lite/720p Lite | |
•When 1080p Lite Mode is Enabled:VGA/WD1/4CIF/CIF | |
Main Stream Frame Rate: | •For 4 MP Stream Access:1080p Lite/720p/WD1/4CIF |
•For 4 MP Stream Access:VGA/CIF@25 fps (P)/30 fps (N) | |
•For 3 MP Stream Access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps | |
•For 720p Stream Access:720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) | |
•For 1080p Stream Access: 1080p/720p@15 fps; VGA/WD1/4CIF | |
•For 1080p Stream Access:CIF@25 fps (P)/30 fps (N) | |
•When 1080p Lite Mode is Enabled:1080p Lite/720p Lite/VGA/WD1/4CIF | |
•When 1080p Lite Mode is Enabled:CIF@25 fps (P)/30 fps (N) | |
Sub-Stream Frame Rate: | WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
Video bit Rate: | 32 Kbps to 6 Mbps |
Audio Output: | 1-ch, RCA (Linear, 1 KΩ) |
Audio bit Rate: | 64 Kbps |
Dual Stream: | Support |
Stream Type: | Video, Video & Audio |
Synchronous Playback: | 8-ch |
Remote Connections: | 64 |
Network Protocols: | •TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, |
•SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
SATA Interface: | 1 SATA interfaces |
Hard Disk Capacity: | Up to 10 TB Capacity for Each Disk |
Two-Way Audio Input: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (Using the First Audio Input) |
Network Interface: | 1, RJ45 10M/100M/1000M Self-Adaptive Ethernet Interface |
USB Interface: | Real panel: 2 × USB 2.0 |
Power Supply: | 12 VDC |
Consumption (without HDD): | ≤ 12W |
Working Temperature: | -10 °C ~ +55 °C |
Working Humidity: | 10% ~ 90% |
Dimensions (W × D × H): | 260 × 222 × 45 mm |
Weight (Without HDD): | ≤ 1 kg |
